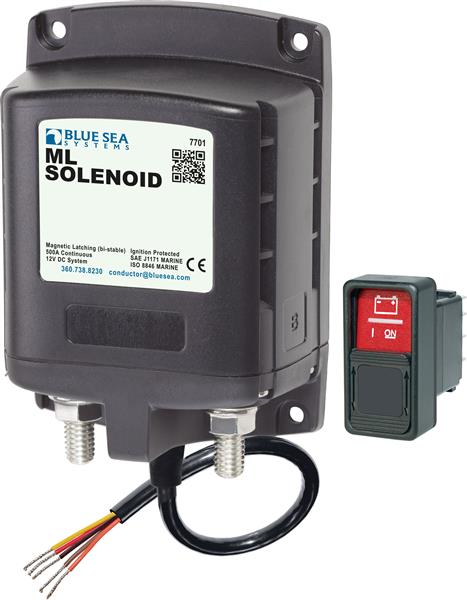

Blue Sea Ml Solenoid Switch 12v
500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required
- Includes ML-Series Remote Control Contura Switch 2145
- 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
- Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
- Silver alloy contacts provides high reliability for switching live loads
- 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
| Specifications | Control Circuit Connection  | Tinned Wire
| | Nominal Voltage | 12V DC
| | Manual Control | No
| | Coil Function | Bi-Stable
| | Mounting | #10
| | Amperage Operating Current continuous | 0A
| | Continuous Rating | 500A
| | Intermittent Rating | 700A (5 min)
| | Cranking Rating 10 sec | 2500A
| | Cranking Rating 1 min | 1100A
| | Cable Size to Meet Ratings | 2x (4/0)
| | Terminal Ring Diameter Clearance | 1.18in (29.97 mm)
| | Terminal Stud Length | 0.875in (22.23 mm)
| | Terminal Stud Size | 3/8" - 16 (M10)
| | Terminal Stud Torque | 140 in-lb (15.82 Nm)
| | Weight | 1.75lb (0.79 kg)
|
|
