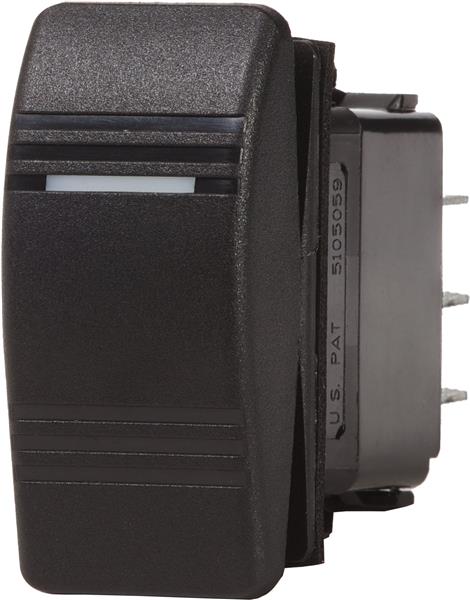

Blue Sea Switch Contura Spst Off-on Bk
- Vibration, shock, thermoshock, moisture and salt spray resistant
- Specially manufactured for mounting in Blue Sea Systems" water resistant panels
- Ignition Protected - Safe for installation aboard gasoline powered boats
- Meets UL1500 and ISO8846 ignition protection requirements
| Specifications | Action  | OFF-ON
| | Pole / Throw | SPST
| | Actuator Color | Black - Contura III
| | Common Applications | lights
| | Maximum Amperage | 20A @ 12V
15A @ 24V
| | Amperage Operating Current | 18mA (LED)
| | Minimum Operating Temperature | -40° C
| | Maximum Operating Temperature | 85° C
| | Embedded LEDs | 1
| | Lighting | LED rated 100,000 hours 1/2 half
| | Seals | Internal and external gasket panel seal
| | Weight | 0.09lb (0.04 kg)
|
|
