Digital Yacht Navlink Blue With Ruuvi Standard Weather Sensor

Digital Yacht Navlink Blue With Ruuvi Standard Weather Sensor

NAVLink Blue with Ruuvi provides a perfect temperature, humidity and barometric pressure monitoring solution for NMEA 2000 and smart devices and a great solution for local weather monitoring

This is a new solution for temperature, humidity and barometric pressure monitoring on your NMEA 2000 system and MFD using Digital Yacht’s NavLINK Blue interface

Ruuvi Tag is a wireless, Bluetooth temperature, humidity and  barometric pressure sensor which wirelessly connects to the  NAVLink Blue interface to display these important parameters on your multi function display.  Most modern MFDs from brands such as Garmin, Raymarine, Navico and more can display this information.

NAVLink Blue supports up to 4 sensors so you can monitor multiple areas around the boat.

Ruuvi sensors continuously broadcast sensor data at 0.8 Hz and simultaneously log environmental sensor data at a 5 minute interval for 10 days, storing data internally so you can view histograms of historical data and trends via the Ruuvi Bluetooth app (for iOS & Android).

Choose between RuuviTag Pro or RuuviTag Standard. The RuuviTag Pro is a more rugged version of the RuuviTag Standard. Both share the same circuit board design and operating principle. The RuuviTag Pro features a more accurate temperature sensor, a more durable enclosure, improved mounting options, and a wider operating temperature range battery.

CONFIGURATION

You can configure the NavLink Blue through its own simple web interface.

In BlueTooth mode, NavLink Blue will automatically scan for nearby Ruuvi sensors for 30 seconds. To differentiate sensors, place the desired sensor close to the NavLink Blue during BlueTooth mode scanning.

Switch to WiFi mode, just open your web browser, enter the NavLink Blue’s IP address, and you can now add and configure sensors (Sea Temperature, Outside Temperature).

To switch from Bluetooth to Wi-Fi mode, follow these steps:

1. Press and hold the reset button for 5 seconds.
2. The LEDs will light up in sequence.
3. When all 5 LEDs are illuminated, release the button.

Once in Wi-Fi mode, the NavLink Blue is ready for configuration through the web interface.

SPECIFICATIONS

• Complete system with Ruuvi wireless sensor and NAVLink Blue NMEA 2000 BT interface
• Reliably monitor temperature, humidity and barometric pressure on your NMEA 2000 navigation system
• BT app for phones and tablets
• Great for local weather analysis
• NAVLINK Blue connects up to 4 wireless Ruuvi sensors for multiple locations
• Historical analysis and graphs via BT app too

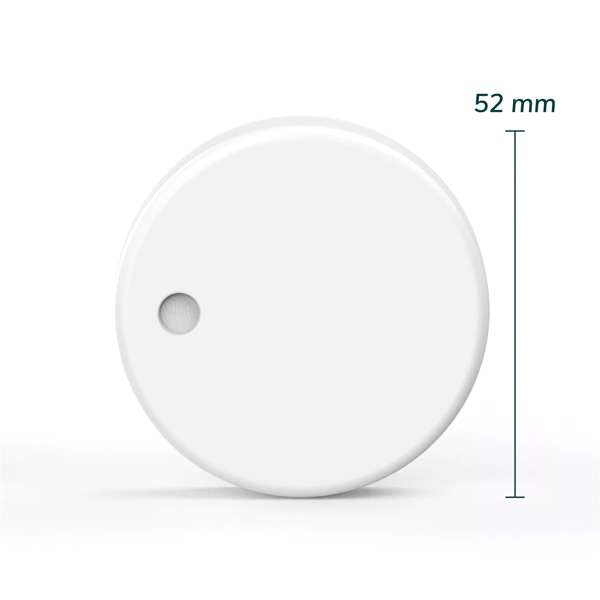

• Ruuvi Tag measure just 52mm diameter (25g)
• Ruuvi Tag Pro measures just 78mm max (38g)
