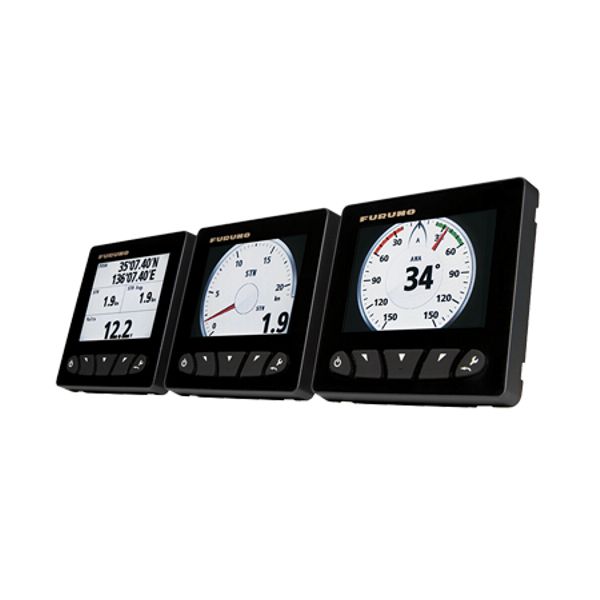

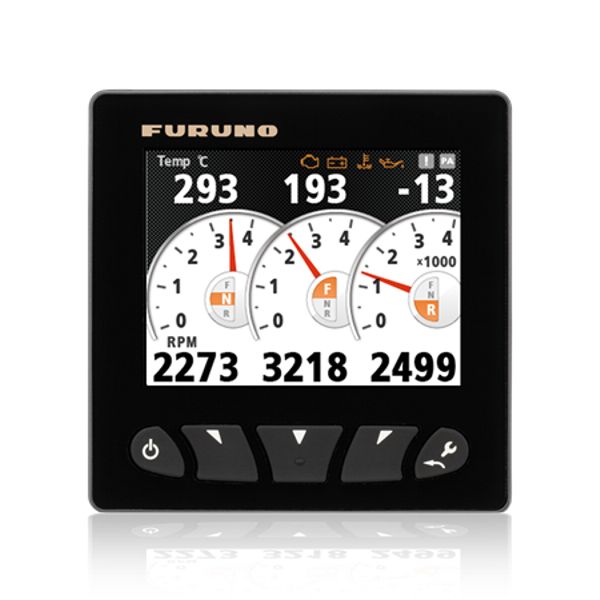

Furuno FI-70 4.1 Inch Colour Multi Instrument All your info... All in one, for powerboats and sailboats alike The new FI-70 INSTRUMENT/DATA ORGANIZER sports a vibrant 4.1" bonded color display that is visible even in the harshest sunlight conditions. Utilizing the CAN bus network, external sensors can easily be connected for simple and reliable operation. The FI-70 features an easy to operate graphical user-interface. It allows you to customize almost every display property, allowing you to choose the information you want to be displayed, in the way you want to see it! The screen is bonded for fog-free performance and is perfectly visible even in bright daylight. a variety of external sensors can be connected via the CAN bus network for simple and reliable operation. Detailed Satellite Compass Information
The FI70 can be used to set detailed parameters for the SCX20 and SC33 Satellite Compass. You can assign essential parameters such as ship's width, length and height as well as the exact antenna position to allow the Satellite Compass to operate at peak efficiency. The display can also be used as an effective Satellite Compass Indicator, capable of displaying 3-Axis Speed (forward-aft, transverse port-starboard at the bow, and transverse port-starboard astern). This information can be displayed in either graphical or digital numeric format, and is useful in evaluating detailed motion at berth or to see how the vessel has drifted.
Heave, representing the upward and downward motion of the vessel, can also be displayed. This display offers an up or down arrow indicating direction of heave, along with a numeric value to indicate distance.
The FI70 can even be used to to display the status of GPS satellites that the SCX20 and SC33 rely on to operate.
Features:
- Beautiful 4.1" QVGA screen that is sunlight viewable

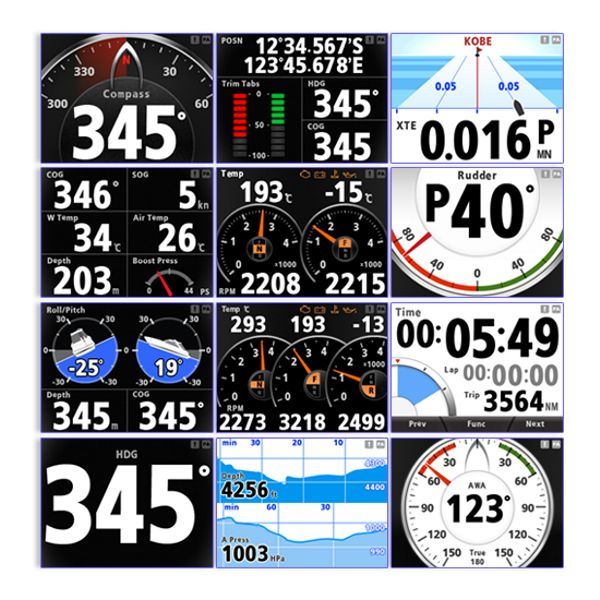

- Simple and intuitive interface with full customizability
- Day & Night mode for improved visibility
- Designed to perfectly match the NavNet TZtouch2 and NAVpilot 711C on your helm station
- With the new Analog - NMEA2000 converter, IF-NMEAFI, you can still use your older analog sensors
- Low power consumption (0.25 A max)
General: | Port | CAN bus (NMEA2000) x1 |
|---|
| Display Unit | 4.1" Color LCD (QVGA 320x240 pixels) |
|---|
| Temperature | -15°C to +55°C |
|---|
| Waterproofing | IP56 |
|---|
| Power Supply | 15 VDC through CAN bus (15 VDC 0.25 A max, LEN3) |
|---|
| Weight | 0.29 kg |
|---|
| Size | 115 (H) x 115 (W) x 32 (D) |
|---|
What's in the box: - 1 x FI-70 Colour Instrument
- 1 x 6m Connecting Cable
- Installation Materials
|
