Humminbird XTM 9 HW MDI T - MDI+ Trolling Motor TransducerTrolling Motor Mount, MEGA Down Imaging+ 800kHz/455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor.
- Compatible with: HELIX 12/10/9 CHIRP MEGA DI+ G3N, HELIX 15/12/10/9 CHIRP MEGA DI+ G4N to the maximum capabilities of the unit. HELIX 12/10/9/8 CHIRP MEGA SI+ G3N, HELIX 15/12/10/9/8 CHIRP MEGA SI+ G4N to the maximum capabilities of the transducer.

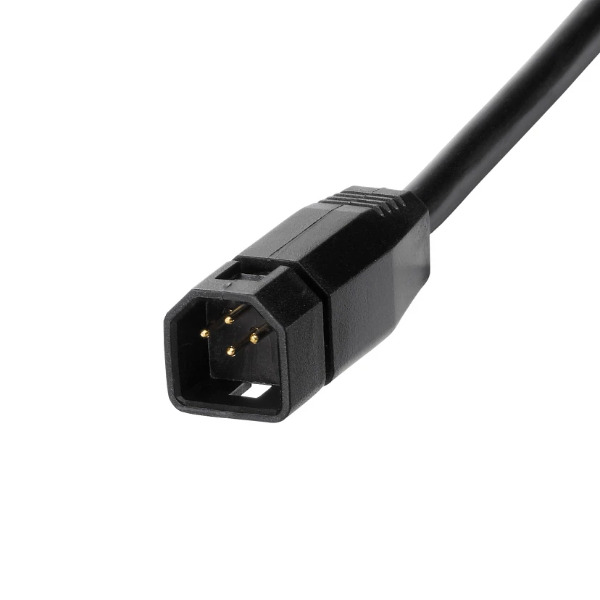

- Cable Length: 15 Feet
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
- Note: This transducer will not fit Minn Kota trolling motors with less than 80 pounds of thrust as it measures 7.15" long by 2.3" wide and will not fit between the prop and the skeg.
- 1-Year Limited Warranty
Model - XTM 9 HW MDI T - HELIX MEGA DI+, Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer
Product Code - 710281-1
UPC - 0082324053221
Mount Type - Trolling Motor
Sonar Type - MEGA Imaging +, Dual Spectrum
Current Models - HELIX 10, HELIX 9, HELIX 15, HELIX 12
Warranty - One-Year Warranty
|
