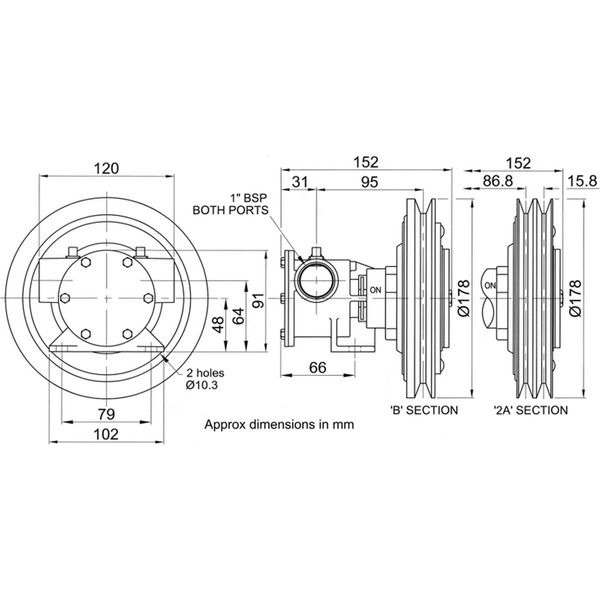

Jabsco 50080-2101 Clutched Bilge Pump - Bronze - Twin A Pulley - 1in BSP Ports - 24VJabsco 24V foot mounted clutched pump for bilge and deckwash applications. The pump has 1" BSP female ports and measures 160mm long with a 180mm pulley diameter (2A pulley).
The Jabsco clutched pump is capable of pumping 80 litres per minute (17.5 gallons) at 3 metres total head. This bilge and deckwash pump has a bronze body, stainless steel shaft and comes with a neoprene impeller fitted for maximum performance when pumping clean or slightly contaminated water. A nitrile impeller may be fitted for use with oily water.
The pump can self-prime up to 2 metres of vertical lift and is tolerant to moderate amounts of suspended solids. Specifications: - Fuse-2.5A
- Height Description-91mm (3.6") Excluding Pulley
- Length-152mm (6")
- Series-50080 Series
- Size-Pulley Size: Twin A Section (13mm)
- Type-Clutch Pumps
- Voltage -24V DC
- Width-Excluding Pulley: 120mm (4.75")
- Brand-Jabsco
- Clutched Pump Pulley Size-Twin A Section - 13mm
- Automatic Bilge Pumps-No
- Bearing Type-Standard Duty
- Maximum Pump Head-Over 4.27 Metres
- Seal Type-Lip Seal
- Warranty-1 Year
- Flow Rate 3 Metre Head-4800 LPH (1268 US GPH) at 1500 RPM
- Maximum Recommended Head-20 Metres (65 Feet)
- Model-50080-2101
- Replacement Impeller-17937-0001-P
- Self Primes up to-2.4 Metres (7.9 Feet)
- Inlet Outlet-1" BSP Female Thread
|
