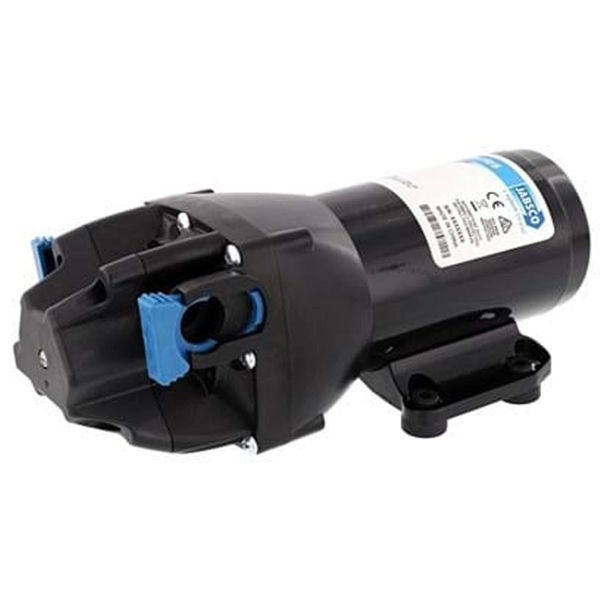

Jabsco Xylem Par-Max HD4 Freshwater Pump - 4GPM / 15LPM - 40PSI - 12VJabsco water pressure pump Q401J-112S-3A is an efficient, self-priming Par Max HD4 pump with high flow output for serving four or more outlets. The Jabsco multi-diaphragm design self primes to 2.4m vertical lift and can run dry without damage. Supplied with inline Quick Connect strainer (40 Mesh).
This Jabsco pump replaces the following drinking water pressure pumps: 31620?0292, 32600?0092, 82400?0392, 82500?0392 and 82600?0392.
The pressure pump can be used for the following applications: Washdown, with a Y-valve to serve a dual purpose Livewell circulation pump, Freshwater Delivery Pumps (galley, shower, washing machine), Shower Drain, Baitwell, General Purpose and Auxiliary Bilge.
Specifications: - Approvals-CE - EMC/EMI, EN 60945 (Marine) EN 61000-6-3 (residential, commercial, & light industrial) EN 55014-1 (Household appliance, electrical tools, & similar products), RCM, WEEE, RoHSII, ISO8846 Marine (Ignition Protected)
- Cut Out Pressure-25 PSI / 1.7 Bar
- Flow Rate Description-15.1 LPM (4 US GPM)
- Fuse-15A (Not Included)
- Height Description-97mm (3.8")
- Length-Pump: 239mm (9.4"), Cable: 305mm (12")
- Material-Upper Housing*: Fibre reinforced polypropylene, Lower Housing: Cast Aluminium, Check Valve Retainer*: Polypropylene, Diaphragm*: Santoprene, Check Valves*: EPDM, Switch diaphragm*: EPDM, Bypass Diaphragm*: EPDM, PH Seals*: EPDM, PH Fasteners: Stainless Steel, Baseplate: Plastic & rubber feet, Motor Casing: Cast Aluminium; Coated Steel. (*in contact with water)
- Series-Par-Max HD4
- Temperature Range-Ambient: 0°C ? 60°C (32°F ? 140°F), Fluid: 0°C ? 60°C (32°F ? 140°F)
- Type-Fresh Water Pumps
- Voltage-12V DC
- Width-109mm (4.3")
- Brand-Jabsco
- Accumulator Recommended-Yes
- Warranty-3 Years
- Dimensions-Distance between mounting hole centres: 50mm x 90mm (2" x 3.6")
- Hose Size-13mm / 1/2"
- Maximum Pressure-Inlet: 30 PSI (2.1 Bar)
- Model-Q401J-112S-3A
- Replaces-Jabsco 31620?0292, 32600?0092, 82400?0392, 82500?0392 & 82600?0392, WP-014 & 509736. Closest Alternative for Jabsco 52600-0292 PAR-Max 7 Pump
- Self Primes up to-2.4 Metres (7.9 Feet)
- Wire Size-2.5mm2 (14 AWG)
- Inlet Outlet-Fittings for 13mm (1/2") ID hose
- Amps Description-Maximum: 8A (at 25 PSI / 1.7 Bar)
|
