Mastervolt AC Master 12V/300W IEC (230 V) Sine Wave Inverter

Mastervolt AC Master 12V/300W IEC (230 V) Sine Wave Inverter

Reliable AC power for recreational and semi-professional use

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.

Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features

•     Pure sine wave technology protects sensitive equipment.
•     Delivers full output at high peak power under the most demanding conditions.
•     Automatic power saving system for extended runtime.

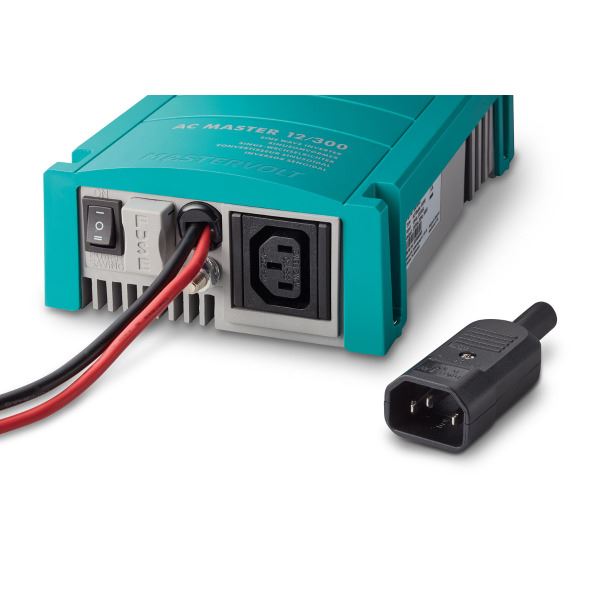

•     Easy to install: convenient IEC socket with IEC plug included.
•     Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.


Applications

Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking and power tools. For (mobile) applications in your home, office or service vehicle, or during your holidays.

Specifications

• General specifications
• Output voltage - 230 V - 50 Hz (± 0.1%)
• Output waveform - true sine
• Nominal battery voltage - 12 V
• Recommended battery capacity - ≥ 60 Ah
• Continuous power at 25 °C / 77 °F, cos phi 1 - 300 W
• Continuous power at 40 °C / 104 °F, cos phi 1 - 250 W
• Peak load (5 s) - 600 W
• AC connection - universal
• Galvanic isolation - yes
• Efficiency - 90 %
• Display/read-out - LED display
• Alarms - 4 alarm modes
• Dimensions, (hxwxd) - 210 x 130 x 60 mm (8.3 x 5.1 x 2.4 inch)
• Weight - 1.16 kg (2.6 lb)
• Compliance - CE, E-mark, ABYC A-31

• Technical specifications
• Technology - high frequency, input & output fully isolated
• Low battery voltage, switches off at - 10 V, ± 0.5 V
• Low battery voltage, switches on at - 11 V, ± 0.5 V
• High battery voltage, switches off at - 16 V, ± 0.5 V
• High battery voltage, switches on at - 14.5 V, ± 0.5 V
• Max. ripple on DC (battery) - 10 % RMS
• Input current (nominal load) - 22.5 A
• No-load power consumption (ON mode) - 0.58 A – 7 W
• No-load power consumption (energy saving mode) - 0.33 A - 4 W
• Minimal DC fuse (slow blow) - 2x 40 A
• Minimal cable size - 1.5 mtr DC cable delivered as standard
• Harmonic distortion typical - < 6 %
• Cos phi - all power factors allowed
• Temperature range (ambient temp.) - -20 °C to 40 °C, derating power > 40 °C (-4 °F to 104 °F)
• Cooling - natural/forced
• Switch off at (auto recover after cooling down) - 50 °C (122 °F)
• Protection degree - IP23, vertical wall mounting
• Protections - over temperature, over load, short circuit, high/low battery voltage
• MasterBus compatible - no
