Multiflex OH175 Hydraulic Steering System - Single Engine up to 175HPMultisteer offers the Hydraulic standard installation kit for Single outboard boats equipped with Single engines. This top-quality product provides smooth manoeuvrability and effortless control, making it an excellent choice for anyone seeking these features. Installing 175 HP: OH-175 Hydraulic Steering for Outboard is easy and can be done by yourself, as it includes all the necessary parts. Once you open and install the kit, your boat will be ready to cover long distances on the water.
The Standard Steering Kit OH-175 for Single Cylinder – Single Outboard includes the following items:

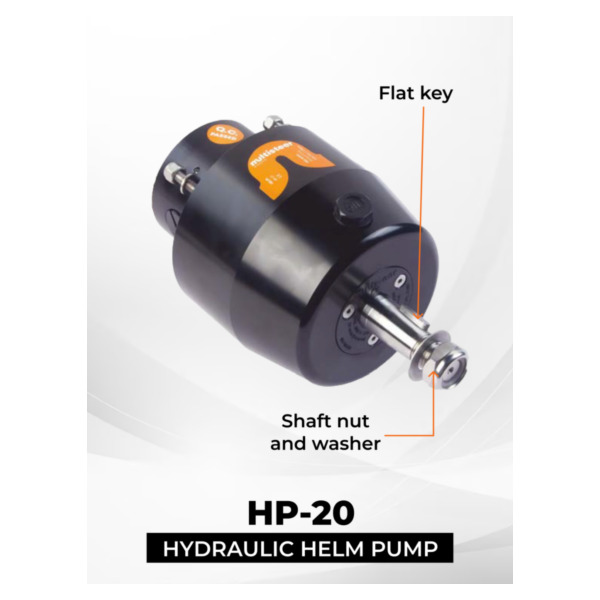

- Hp-20 Flush Mount Hydraulic Helm Pump x 1
- OC-175 Single Balanced Front Mount Cylinder x 1

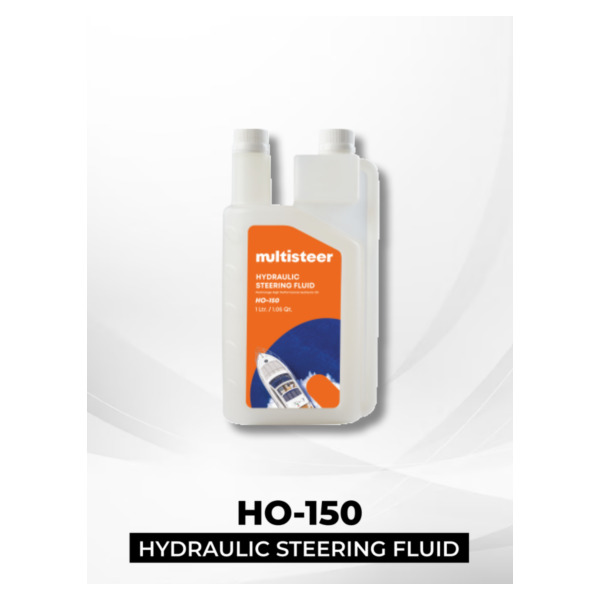

- HO-150 Hydraulic Steering Fluid - 2 Liters
- CT-7.5 Hydraulic Hose of 7.5 meters with factory crimped hose connectors x 2
Note: The Steering Wheel is not included in the standard kit.
Compatible Outboard Engine
YAMAHA Four Stroke 90 Hp to 175 Hp
YAMAHA Two Stroke 90 Hp to 150 Hp
MERCURY Four Stroke 75 Hp to 175 Hp
MERCURY Two Stroke 60 Hp to 90 Hp
SUZUKI Four Stroke 70 Hp to 175 Hp
SUZUKI Two Stroke NA
HONDA Four Stroke 75 Hp to 175 Hp
EVINRUDE Four Stroke 90 Hp to 175 Hp
TOHATSU Four Stroke 70 Hp to 175 Hp
Note: If there is a wing nut type transom mount clamp screw, CUT it. It may foul the cylinder when trimmed fully.
|
