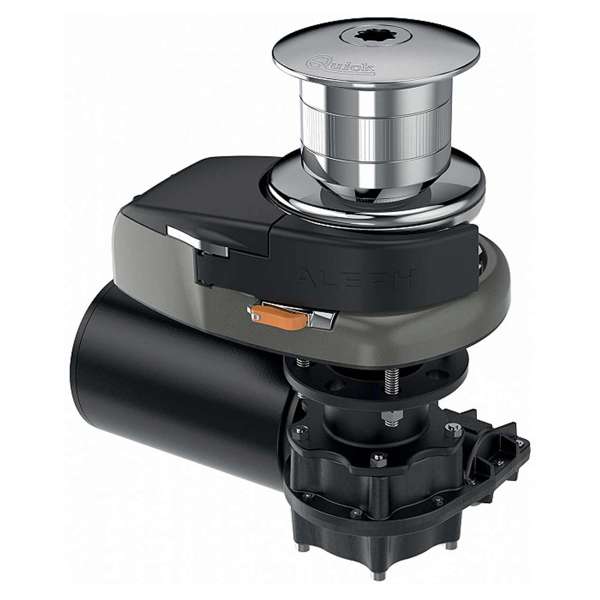

Quick AL3P 1012D Vertical Windlass Gypsy & Drum 1000W / 12V / 10mm (Q-FSAL1012D010B00)The Quick AL3P Aleph 1012D vertical windlass is suitable for boats from 10m to 14m (33 to 46ft). The vertical mount windlass is easy to install with an anodised aluminium base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 10mm (3/8") gypsy which is suitable for 10mm ISO chain and a 5/8" rope. This version also comes with a drum attached. Specifications: | Primary Construction | Aluminium | | Suitable For | Chain and Rope | | Boat Size | 10 to 14 metres in length | | Gypsy Size | 10mm | | Brand | Quick | | Series | Aleph AL3P | | Model | 1012D | | Voltage Description | 12V DC | | Wattage | Motor Power: 1000W | | Working Load | 120kg (264 lb), Maximum: 370kg (816 lb) | | Maximum Chain Speed | 39.6 m/min (129.2 ft/min), At Working Load: 20.4 m/min 66.9 ft/min) | | Amps Description | Current Absorbtion At Working Load: 140A | | Fuse | 80A Protection Circuit Breaker | | Contents | Contactor Unit, Technopolymer Handle, Drilling Template, User Manual | | Approvals | CE | | Height Description | Above Surface: 169mm (6-21/32"), Below Surface: 155.4mm (6-1/8") | | Width | 179mm (7-1/16") | | Depth | 239mm (9-13/32") | | Weight | 19.7kg (43lb) with drum | | Thickness | Deck: 25mm to 50mm (63/64" - 1-31/32") | | Size | Motor Cable: 35mm2 (AWG2) |
|
