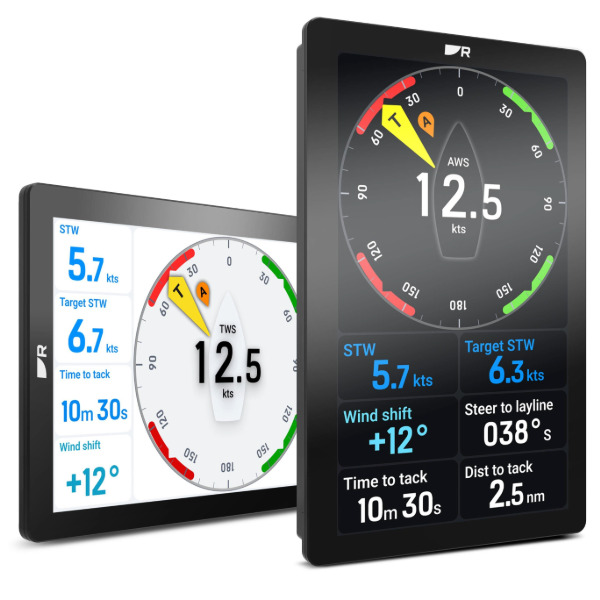

Raymarine Alpha Performance Display - 9 Inch7 and 9-inch Performance Displays. The latest in boat instrumentation with portrait and landscape mounting options and a single data and power cable for easy installation.
Alpha Performance Displays are our most versatile marine data displays. High-bright touchscreen instruments with wide view angles offer excellent visibility from anywhere onboard. Alpha's extensive data dashboard options and widgets make critical sailing, navigation, and engine data easy to interpret at a glance.
High Visibility
Polarized sunglass-friendly displays with extra wide viewing angles, viewable on the mast or remote location
Rugged Build
Tested to the extreme and built with our exclusive HydroToughTM nano-coating that repels water and oils for reliable touchscreen control
Fully Scaleable
A single power and data cable for fewer cables running through the deck and mast. Support for daisy-chaining up to 4 Alpha displays
Tactical Awareness
Intuitively designed graphical instrument displays, aimed at enhancing tactical awareness and facilitating better decision-making on the water.
SailPointTM Target
SailPoint™ mode provides you with a visual reference of target wind angle, so you achieve your maximum VMG upwind or downwind
Dynamic Wind
The dynamic wind performance display provides automatic zoom to the most critical part of the instrument display based on wind direction.
Alpha and Axiom Systems
Alpha Performance Displays are companion instruments for Raymarine Axiom chartplotters. A simple RayNet Ethernet cable between Axiom and the Alpha display gives Alpha access to Axiom's connected transducers and NMEA2000/SeaTalk NG devices. Once paired with an Axiom network, you can customise and configure your Alpha display into powerful performance sailing, navigation, and engine data instrument.
Specifications:
- Width - Alpha 9" display — 148.9 mm (5.86 in)
- Height - Alpha 9" display — 235.9 mm (9.29 in)
- Depth - Alpha 9" display — 34 mm (1.34 in)
- Port separation distance - 5.71 mm (0.22 in)
- Weight - Alpha 9" display — 1.18 kg (2.60 lbs)
- Power
- Nominal supply voltage - 12 V / 24 V dc
- Operating voltage range - 10.8 V to 32 V dc
- Current - Alpha 9" display — 1.02 A (nominal) @ 12 V dc / 0.52 A (nominal) @ 24 V dc
- Power consumption - Alpha 9" display — 12 W (maximum)
- Inline fuse rating - 8 A
- Network
- 1 x Daisy-chain connector.
- 1 x Power / RayNet Ethernet connector
- Environmental
- Operating temperature range - -25°C to +55°C (-13°F to +131°F)
- Storage temperature range - -30°C to +70°C (-22°F to +158°F)
- Relative humidity - 93% Max
- Waterproof rating - IPx6 and IPx7
- Display
- Display screen - Alpha 9" display — 9” IPS TFT LCD
- Brightness / Luminance - 1500 nits / 1500 cd/m2
- Viewing angles
- Portrait — 85 + / 85 +
- Landscape — 85 + / 85 +
- Resolution - Alpha 9" display — 1280 (H) x 720 (V)
- PPI (Pixels Per Inch) - Alpha 9" display — 163 PPI
- Color - 24-bit color (16.7 million colors)
- Refresh rate - 60 Hz
What's in the box?
- Alpha Series performance display
- Suncover
- Waterproof gasket
- Documentation pack
- 4 x Threaded studs, M4 x 40 mm
- 4 x Thumb nuts
- 2 x mounting brackets
|
