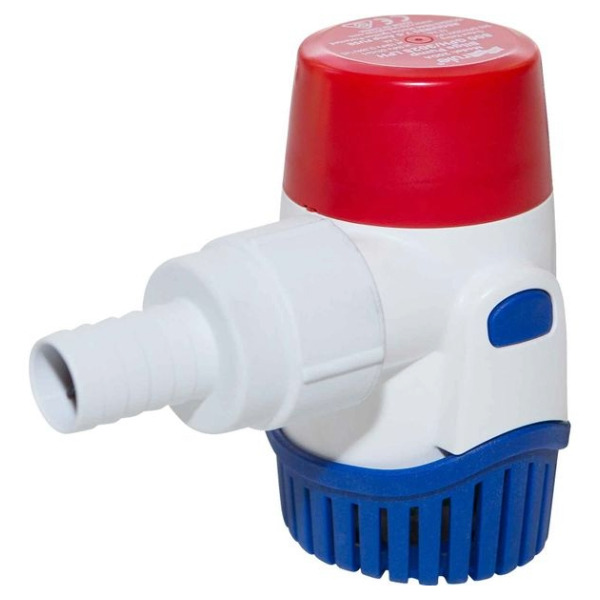

Rule 20DA-24 800 Submersible Bilge Pump - 50 LPM - 19mm Outlet - 24V

Rule 20DA-2 800 Submersible Bilge Pump - 50 LPM - 19mm Outlet - 24V

Rule 20DA 800 Series submersible bilge pump with a flow rate of up to 50 litres per minute (13 gallons).

The Rule submersible bilge pump is a light weight, compact pump with a tough plastic body and integral strainer. The quick release strainer allows for rapid cleaning of the submersible bilge pump internal components.

The Rule 800 range of small submersible bilge pumps are recommended for discharge heads up to a maximum of 2 metres. The submersible bilge pump meets ISO8846 marine (ignition) and ISO8849 marine (bilge pump) standards.

The Rule 20DA-24 replaces the 24 volt Rule 21R and has the following features:

• - Higher Flow - through an optimised impeller, the 20DA is able to provide greater flow at the same amperage
• - Built-in Thermal Cut-Off (TCO) - this provides extra protection for both the pump and the vessel it is installed in
• - Back Flow Prevention - the check valve reduces the amount of water left in the bilge, minimising odour and helping to keep your bilge cleaner
• - Hidden Air Vents in the Body - these vents help prevent air-locking in challenging plumbing installations and helps with the check valve
• - Threaded Discharge - this allows for easier pump installation, and easier maintenance
• - Base Fits Existing Rule 21R Screw Holes

Specifications:

• Approvals - ISO8846 marine (ignition), ISO8849 marine (bilge pump) standards, CE Certification
• Flow Rate - 3028 LPH (800 US GPH)
• Flow Rate 1 Metre Head - 2328 LPH (615 US GPH)
• Fuse - 3A
• Height - 111mm (4.4")
• Length - 74mm (2.9")
• Material - Tough Plastic Body
• Outlet - 19mm (3/4") ID Hose
• Series - Rule 800
• Type - Bilge Pumps
• Voltage - 24V DC
• Width - 64mm (2.5")
• Brand - Rule
• Primary Construction - Plastic
• Automatic Bilge Pumps - No
• Maximum Pump Head - 0 to 2.2 Metres
• Warranty - 3 Years
• Flow Rate 2 Metre Head - 1608 LPH (425 US GPH)
• Hose Size - 19mm / 3/4"
• Ignition Protected - Yes
• Maximum Recommended Head - 2 Metres (6.5 Feet)
• Model - 20DA
• Replaces - 504174 - Rule 21R 800 Submersible Bilge Pump
• Amps - 1.7A at 24V, 2.2A at 27.2V
