ATMOS, by Scanstrut, will revolutionize any family’s boating experience. This beautifully designed, in-built air station is here to maximize quality time on the water. At the push of a button, ATMOS is ready to inflate paddleboards, towables and more: simply set the target pressure and let ATMOS do all the hard work. Utilizing Scanstrut’s outdoor technology DNA, this is waterproof on-board air that’s engineered to thrive in the harsh marine environment.
Featuring next-gen air pump technology to provide fast, effortless inflation (and deflation) for all on-water toys. Compact and shallow, ATMOS fits into almost any panel on board such as seating, consoles, or near the swim platform. Now have ready-to-go air, right where it’s needed, for even more family fun on the water.

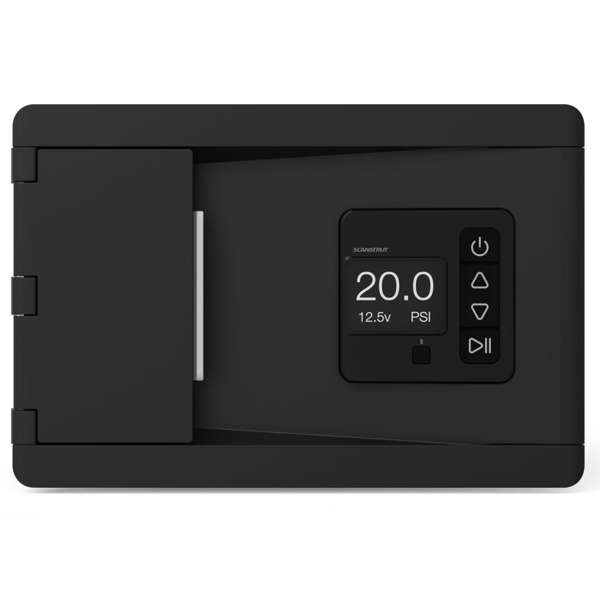

The Design The front - Take control with Soft Touch TPE buttons and cutting-edge LCD display. Specially crafted for the challenging marine environment, the buttons feature a non-slip texture that provides a tactile surface, even with wet hands and the bright, wide viewing angle display gives a great view from any place on the boat, even on the brightest days. The display also features a helpful Live Voltage readout, to easily keep track of the boat's battery health.
The back - Easily integrate ATMOS into any boat with its compact and shallow design. The versatile airstation can be installed in a variety of locations, including seating, consoles, or by the swim platform, making it convenient and accessible wherever it's needed. Easily installed into any panel using 10 self-tapping screws, with a foam gasket included to ensure a secure and waterproof fit.
The side - The minimum cavity depth required is 110mm/4.33", and it can be installed at an angle ranging from +10º to -30º from vertical. The power cable length is 500mm (20”) with a wire gauge of 2.0mm2 (14 AWG), please note that there are no end-user serviceable parts.
Innovative Two-Stage Pump ATMOS with Brushless Technology - Unleash the power, efficiency, and reliability of an innovative two-stage pump system designed to meet the rugged demands of the marine environment. The first stage features a highly efficient fan motor, followed by a robust piston pump, both designed specifically for the rugged demands of the marine environment. ATMOS, combines both pumps into one waterproof, easy-to-use onboard air station, automatically switching at 1.1PSI from the HVLP to the HPLV pump.
Stage 1: High-volume, low-pressure (HVLP) - Designed to move large volumes of air with minimal pressure. They are typically used for inflating larger inflatable objects like kayaks, large tubes and bathing platforms as they can quickly inflate the object to the desired pressure.
Stage 2: High-pressure, low-volume (HPLV) - Designed to generate a high level of pressure with a low volume of air. Perfect for inflating smaller toys like SUPs, inflatable kayaks, and tubes that require a higher level of pressure for optimum performance.
Technical - Input voltage: 12V Battery system (10-14V)
- Max current draw: 12A (140W)
- Standby current draw: 0.2W Max
- Max volume of airflow 0-1 PSI: 350 LPM/12.3 CFM
- Max volume of airflow 1-20 PSI: 70 LPM/2.5 CFM
- Ambient operating temp: -20º to +50 ºC
- Two Stage Pump: Stage 1 = 0 - 1 PSI, Stage 2 = 1.1 - 20 PSI

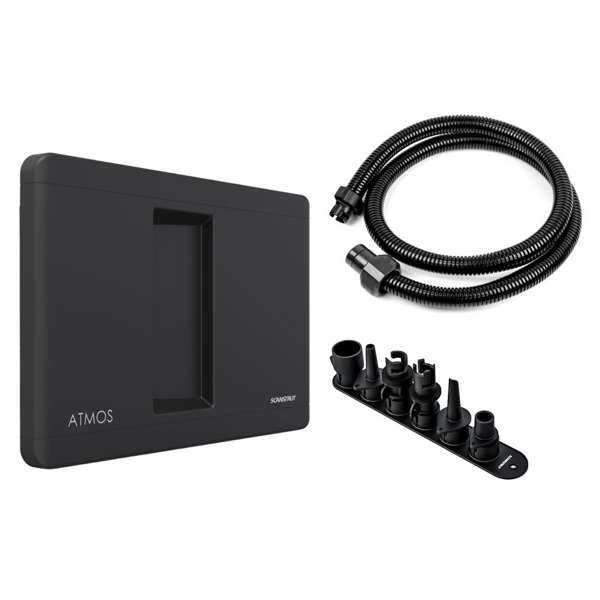

In The Box Sun cover - Supplied with a heavy duty sun cover, it can help to protect it from the long term damaging effects of the sun, salt and other elements.
2.5M (8ft) hose - When inflating a paddleboard on a boat, the most stable location for the pump is usually on the deck or another flat surface. However, this location may not be close enough to the paddleboard to allow for easy inflation if the hose is too short. A longer hose can help to bridge this distance.
6x Hose attachments - Supplied with 6 different adapters including; Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves, and 805 Valve. Everything needed to inflate and deflate a range of toys with ease, no matter what type of valve they have.
