ACR RCL-95 R/C LED Searchlight - White - 12V / 24V
The all-new RCL-95 LED searchlight was designed for performance and simplicity and to be one of the brightest led boat searchlights. With an industry-best 460,000 candelas using 10 High Flux (50W) LEDs, you have visibility over ¾ of a nautical mile to light the way to your destination. The RCL-95 LED’s sleek design makes it an attractive and cost-effective choice for small to medium-sized recreational powerboats as well as light commercial vessels.
Use the RCL-95 LED searchlight with either the wired dash mount joystick control or the wireless handheld remote to rotate the light 360 degrees continuously at either a fast or slow speed without the hassle of a hard stop. With an 8-degree beam angle, the light can tilt an impressive 135 degrees to make lighting draw bridges, buoys, and docks a breeze. The auto-home feature will conveniently park the searchlight back at the desired starting location each time you turn the searchlight off. The RCL-95 is the brightest led boat searchlight that is weather resistant with the electronics located in the IP68 water-resistant light head instead of the base for increased protection. The ASA housing and lens are sealed against the elements for years of trouble-free operation.
Key Features:
- 10 High Flux LEDs (OSRAM)
- 460,000 Candela, Max Beam Distance 4,501 Feet (1,372 m) one of the brightest led boat searchlight

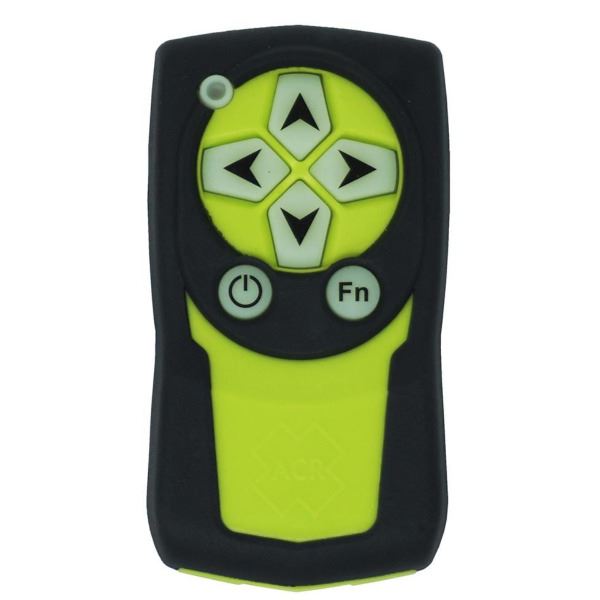

- Wireless Handheld Remote and Wired Dash Mount Joystick (Both Included)
- 360o Continuous Rotation and 135o Tilt
- Auto-home return when off
- 4 Amps (12V) to 2 Amps (24V)
- Efficient, long-life LED’s – 50,000 operating hours
- UV & Weather Resistant
- Simple Installation (12-24V Power Connection and 5M Wired Joystick Control Cable)
- Perfect for work trucks, vans, boats, and workboats
Optional Accessories:
- Wireless Dash Mount Remote (p/n 9635)
- RCL-95 Replacement Mounting Plate for GOLIGHT® (p/n 9639)*
- RCL-95 16.4′ (5m) Extension Cable (p/n 9638)
*This retrofit kit can be used when replacing GOLIGHT® Stryker or RadioRay searchlights with the RCL-95 searchlight. Note: This kit will not work for the RadioRay Portable version (GOLIGHT is a registered trademark of GOLIGHT Inc.)
ACR Product Number
| PN 1958 (White) | | Size | 5.9 x 7.1 x 7.5” (15 x 18 x 19 cm) | | Weight | 4.2 lbs (1.9 kg) (searchlight only) | Material
| Acrylonitrile Styrene Acrylate (ASA) Housing for improved weather resistance | Colour
| White | Operation
| Wireless Handheld Remote (included) / 433.92 MHz and Wired Dash Mount Joystick (included with 16.4’ (5m) cable) | Peak Beam Candle Power
| 460,000 | | Beam Maximum Distance | 4,501 ft (1,372 meters) | Beam Pattern / Angle
| Spot / 8o | Elevation Angle
| 135° | Rotation
| 360° Continuous | Rotation Speed
| Fast 19° per second, slow 12° per second | Elevation Speed
| 11° per second | Lamp
| LED 50W (OSRAM x 10) / 50,000 hour life | IP Rating
| IP 56 (Housing) / IP 68 (LED Module) | | Accessories | Wireless Dash Mount Remote (PN 9635), 16.4’ (5 m) Extension Cable for Wired Controller (PN 9638), Replacement GOLIGHT® Mounting Plate (PN 9639) – Used when replacing GOLIGHT® Stryker or RadioRay Searchlights (will not work for RadioRay portable model), Standard Remote Control (PN 9636) (PN 9636 is included with the searchlight – all other accessories are sold separately) | Footprint Diameter (distance between mounting holes)
| 4.92” x 4.92” (12.5 x 12.5 cm) | Total Footprint (dimensions of searchlight base)
|
6.06” x 6.06” (15.4 x 15.4 cm) | Power Requirements
| 12 or 24 V DC | Warranty
| 2 Years | Patents
| D752,267 / 9,249,960 / 9,890,923 / 10,012,369 | Approvals
| FCC / CE / R10 |
|
