Sideshift SS230 Bow Thruster - White
- Boat size Up to 35ft
- Horsepower 2.5hp
- Voltage 12 V DC
- Current 300 Amps
- Layout Single Prop
- Colour: White

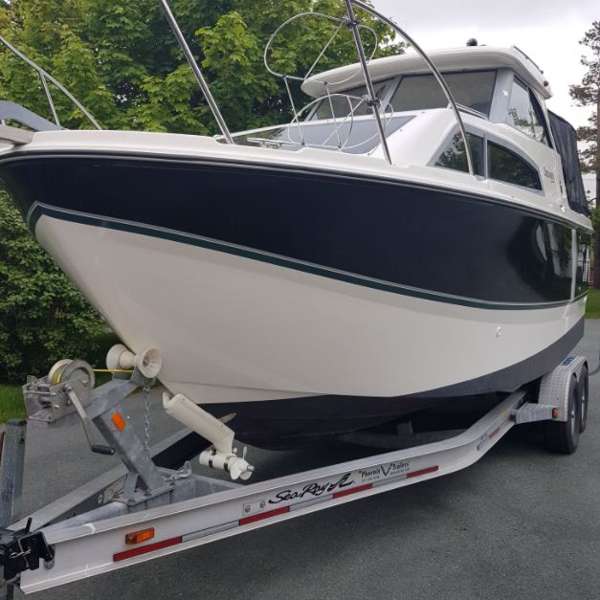

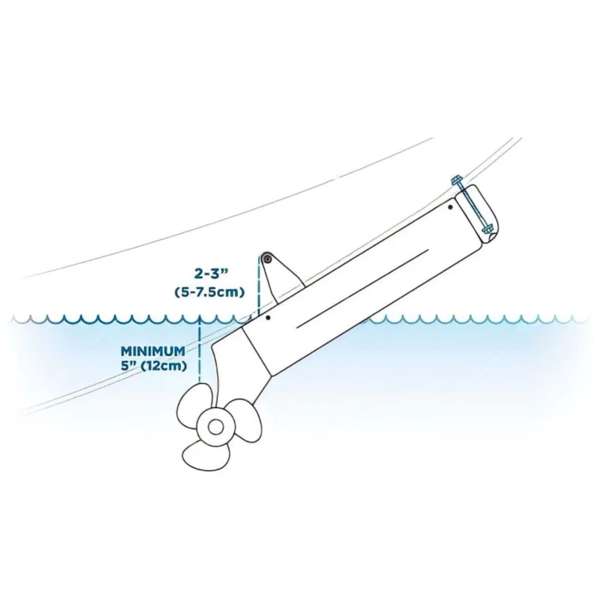

Sideshift’s family of external Bow Thrusters are perfect for boats from 20’ to 60′ in length. They mount easily on the bows of motor cruisers, power boats, yachts, houseboats, pontoon boats, catamarans, trawlers and many other types. No expensive tunnel is required. Mounted externally on a V-shaped bow, the forward-most location maximizes turning power and responsiveness for easy maneuvering in narrow waterways and tight corners. Single handed sailors love the added control that a Sideshift thruster gives. It's like having an extra pair of hands just when you need it! Back confidently into a berth with the simple touch of the joystick or wireless controller. Silent and immediate response is provided by our prop-in-water design, 8” aluminum propellers, and heavy-duty water cooled motor, Saltwater proven, the thruster is anode protected and finished in acrylic enamel paint over epoxy primer to prevent corrosion. All mounting locations are above the waterline. As a result, installation can be done with the boat in the water. Shipped as a complete kit with thruster, controller, hardware and single joystick, installation takes less than a day. The SS230 External Bow Thruster from Sideshift is perfect for boats up to 35′ in length. The unit mounts on the exterior of a V-shaped bow which creates a forward pivot point that gives the boater optimum control. No expensive tunnel in the hull is required and all mounting holes are above the waterline. Offering an immediate response with its powerful water cooled 12V motor, the heavy-duty 8″ aluminum propeller quickly pulls the boat quietly and smoothly. Saltwater proven, the rugged aluminum and stainless steel bow thruster is anode protected to prevent corrosion. It is finished with anti-fouling paint over epoxy primer. Shipped as a complete kit with thruster, motor controller, wireless joystick, wiring harness and mounting hardware, installation usually takes less than a day. Sideshift bow thrusters are sold as a complete kit. Everything you need is included except the power source. Our bow thruster kits include: - Thruster
- Motor Controller
- Joystick
- Wiring Harness
- All Mounting Hardware
- SikaFlex Sealant
Specification Typical Boat Size Boats from 20’(6m) to 35’(9m) in length
Motor Voltage 12 VDC
Motor Amperage 300 Amps
Motor Horse Power 2.5 HP
Motor Revolutions per Minute 3000 RPM
Motor Duty Cycle Run time 30sec Cool down 10 sec
Propulsion System Single 8” Propeller
Joystick Voltage 12V or 24V
Exterior Finish Interlux Protect 2000 Epoxy Primer and Tri-Lux 498 Anti-Fouling Paint
Battery Requirements One 12V 850CCA Starting Type or Gel Cell Battery |
