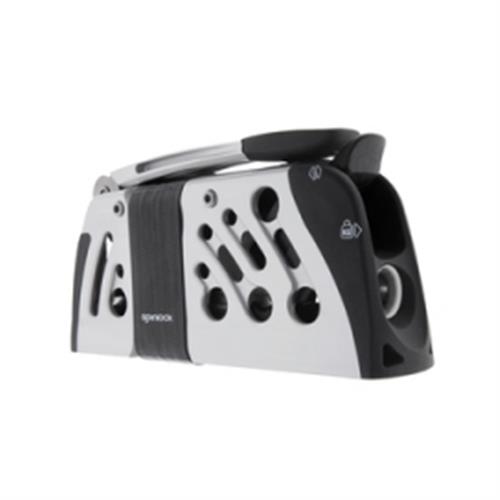

Spinlock Xxc0812 Port Sidemount Bolted - Black

Holds up to 2350kg working load, 30% higher than the standard XX0812, yet still provides controlled release under load

XXC0812 delivers a 50% increase in power: weight, yet is 15% lighter

Lightened handle and body; locally reinforced with unidirectional carbon fibre and with critical components in Titanium*

Ceramic coated jaws hold hybrid covered lines at loads up to 2350kg and help resist heat generated at higher line speeds for extended jaw life

Optimised for high performance 8-12mm (5/16-1/2) line diameters

Internal Torlon roller bearings ensure lasting performance and durability under high loads

Easy on-deck access for removing complete internal assembly even when banked together

Access ports for fresh water flushing

Black, silver and amber versions available

NB: XXC is available with 17-4PH stainless steel parts for teams competing in classes where Titanium is prohibited


Lines: 8mm - 12mm (5/16 - 1/2)
Loads up to 2350kg
Weight: 870g (30.68oz)
Fasteners: 5 x M6 (1/4) Titanium CSK Head (Supplied)


Side Mount
Side mounting is the neatest solution for spars, side decks and coamings. Handed port or starboard; use bolted version for conventional installation, or bonded version for building directly into deck or rig to save installation weight.


Click here for the drill template for the XXC0812
