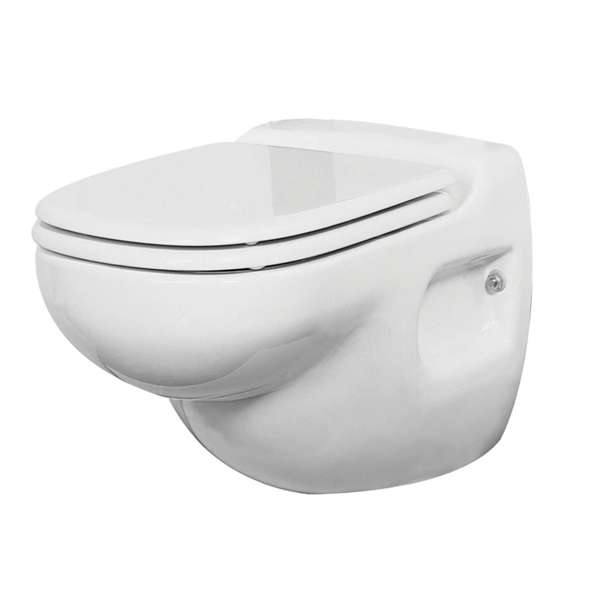

Vetus Toilet type wcs 24V standard
Deluxe, stylish and super quiet 24 Volt electric marine toilet with full size domestic bowl. Tested and certified by the KIWA quality assurance organization.
useful to prevent overflowing on a heeled sailing boat.The toilet type WCS has been tested and certified by the KIWA quality assurance organization. According to their tests, it is absolutely impossible for waste water to contaminate the drinking water supply.
Main features:
Deluxe super quiet 24 Volt electric toilet with compact domestic bowl. All VETUS toilets are equipped with an electric pump which will macerate the contents and evacuate it in about 7 seconds. VETUS toilets are both quick and quiet in operation.
- Very low water consumption.
- The pump motor power is 300 Watts and has a capacity of 36 l/min at 3 metres head.
- The internal diameter of the outlet pipe is only 19 mm. This means that the toilet can be located in any convenient position aboard and can be connected simply to the waste water tank, using VETUS sanitation hose type SAHOSE.
- The discharge pumps are easily accessible for occasional cleaning if required.
- Supplied with a waterproof electronic operating panel.
- Stylish and ergonomic porcelain bowl with an easy clean seat and lid of similar dimensions to a normal domestic toilet
- Stainless steel macerator blade.
- Powerful, very quiet macerator/discharge pump - 60 dB (A).
- Powerful, very quiet macerator/discharge pump - 60 dB (A).
- Large capacity discharge pump.
- Easy to install and simple maintenance.
- Dual-flush system. The ECO button on the control panel will flush 1.2 litres of water. The NORMAL button will flush 2.2 litres. By pressing and holding the evacuation button, the toilets can be discharged without flushing. This is particularly
- Dual-flush system. The ECO button on the control panel will flush 1.2 litres of water. The NORMAL button will flush 2.2 litres. By pressing and holding the evacuation button, the toilets can be discharged without flushing. This is particularly
- All toilets are provided with a water lock and non-return valve in the discharge line.
- All toilets are provided with a water lock and non-return valve in the discharge line.
| Voltage (V) | 24 V | | Current consumption (A) | 12,5 A | | Material | Porcelain | | Colour | | | Control type | Control panel | | Water supply diameter (inch) | Female G3/4 | | Water supply | Connect to water pressure system. 1,7 - 6 bar | | Water consumption (litre) | ECO 1,2 , NORMAL 2,2 | | Build-in panel protection | IP65 | | Control options | ECO flush , NORMAL flush | | Soft close seat | No | | Weight (lbs) | - | | Max. delivery height (feet) | 10 | | Pump output (gallons/minute) | 9,5 | | Panel dimensions (inches) | 2 13/16 x 2 13/16 | | Toilet seat height (inch) | - | | Toilet width (inch) | - | | Toilet depth (inch) | - | | Drain diameter (inch) | 3/4 | | Maximum drain length (feet) | 98 | | Panel build-in depth (inch) | 13/16 | | Weight (kg) | - | | Max. delivery height (m) | 3 | | Pump output (litres/minute) | 36 | | Panel dimensions (mm) | 72 x 72 | | Toilet seat height (mm) | - | | Toilet width (mm) | - | | Toilet depth (mm) | - | | Drain diameter (mm) | 19 | | Maximum drain length (m) | 30 | | Panel build-in depth (mm) | 21 |
|
